Understanding and Calculating Max Open Circuit Voltage

Solar energy is an incredible source of renewable power, and many of us are familiar with the basics of solar panel systems. However, one critical aspect that often goes overlooked is the calculation of the maximum open circuit voltage (Voc) for a string of solar panels. In this post, we’ll delve into why understanding and calculating the max open circuit voltage is crucial for optimizing solar efficiency and preventing potential equipment damage.

What is Max Open Circuit Voltage?

Open Circuit Voltage (Voc) refers to the maximum voltage that a solar panel can produce when exposed to sunlight with no load connected. Calculating the max open circuit voltage for a string of solar panels involves considering factors like the number of panels, the rated open circuit voltage of each panel, the lowest expected site temperature, and the panel temperature coefficient.

Why is it Necessary?

1. Temperature Considerations

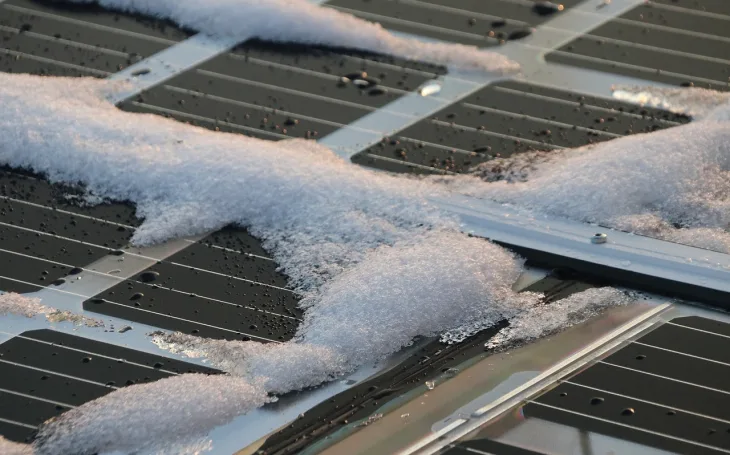

Solar panels are sensitive to temperature changes. As temperatures drop, the voltage produced by the panels tends to increase. The max open circuit voltage calculation helps account for temperature variations, ensuring that the system is designed to handle the highest potential voltage during cold conditions. This is crucial for preventing damage to equipment such as charge controllers, which may struggle to manage high voltages.

2. Optimal System Performance

By accurately calculating the max open circuit voltage, you ensure that your solar power system operates at its highest efficiency. This is especially important in cold but sunny conditions, where the panels can produce more power. Optimizing your system for maximum voltage ensures you harness the available sunlight effectively.

3. System Type Consideration: String Inverter vs. Microinverter

It’s important to note that the max open circuit voltage calculation is particularly relevant for string inverter systems. String inverters are designed to handle the combined voltage of multiple panels connected in series. The calculation helps ensure that the string inverter operates within its specified limits.

On the other hand, microinverter systems operate differently. Microinverters are installed on each individual solar panel, converting the DC output to AC at the panel level. As a result, the max open circuit voltage calculation is usually not required for microinverter systems, as each panel operates independently.

The Dangers of Neglecting Max Open Circuit Voltage

Failure to calculate and account for the max open circuit voltage can lead to several risks, including:

1. Equipment Damage

Charge controllers, inverters, and other system components have voltage limits. Exceeding these limits can lead to irreversible damage. During cold and sunny days, when the voltage tends to rise, neglecting max open circuit voltage calculations may result in equipment failure and the need for costly replacements.

2. Reduced System Lifespan

Consistently subjecting solar system components to voltages beyond their designed limits can significantly reduce their lifespan. Regularly operating at higher voltages can contribute to accelerated wear and tear, ultimately shortening the overall lifespan of the system.

3. Safety Concerns

Unchecked voltage increases can pose safety hazards, potentially resulting in electrical fires or other dangerous situations. Ensuring that your solar power system operates within safe voltage limits is essential for the well-being of both your equipment and your property.

Understanding and calculating the maximum open circuit voltage for a string of solar panels is a fundamental step in designing an efficient and reliable solar power system, especially for string inverter setups. By considering temperature variations and potential voltage spikes, you not only optimize the performance of your system but also protect your valuable equipment from damage.

Remember, it’s not just about generating power; it’s about doing so in a safe and sustainable manner. Take the time to calculate the max open circuit voltage for your solar panel setup, and enjoy the benefits of a well-designed and long-lasting solar power system.
